Wey Hwang professional winding machine manufacturer in Taiwan

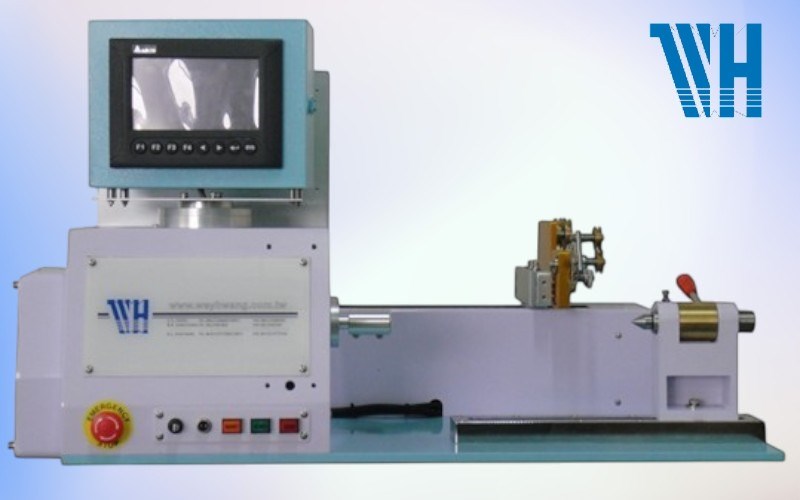

Servo motor system coil winding machine (編號:WH-751-Servo)

Servo motor system coil winding machine with PLC / HMI control system for high precision control. Maximum wire size can reach 2.0mm. It's the best choice for small volume large variety production.

分享到

  Specification

MODEL WH-751-Servo-220V
SPINDLES 1
WIRE SIZE 0.5~2.0mm*
WINDING PITCH 0.001mm – 99.999mm
AXIS SETTING ANGLE 0.1°
SPREAD WIDTH 300mm
COIL DIAMETER 200mm
MAIN MOTOR 750w Servo motor
SPREAD MOTOR 400w Servo motor
MAX. SPEED 1500rpm (Max)
MEMORY USB port for memory storage
POWER SOURCE AC220V +10%, 50/60 Hz
