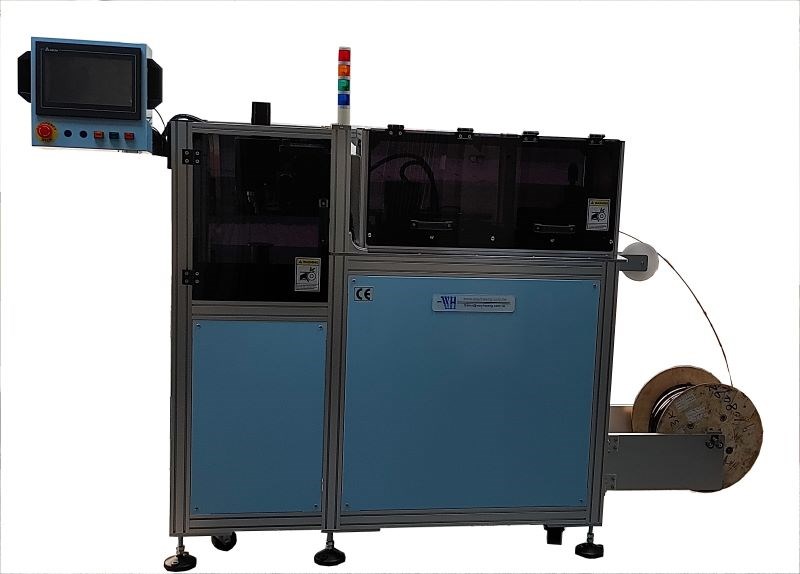

Flat wire winding machine (編號:WH-420B)

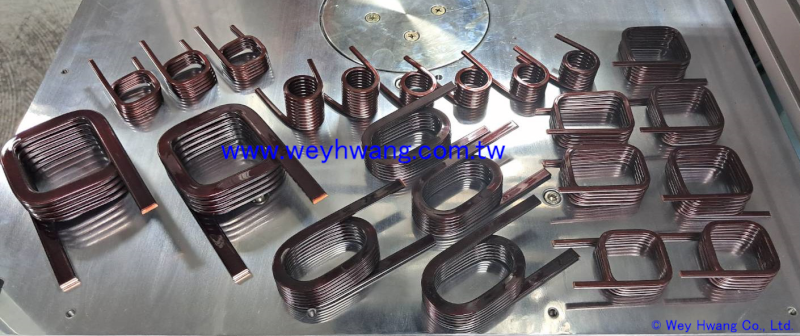

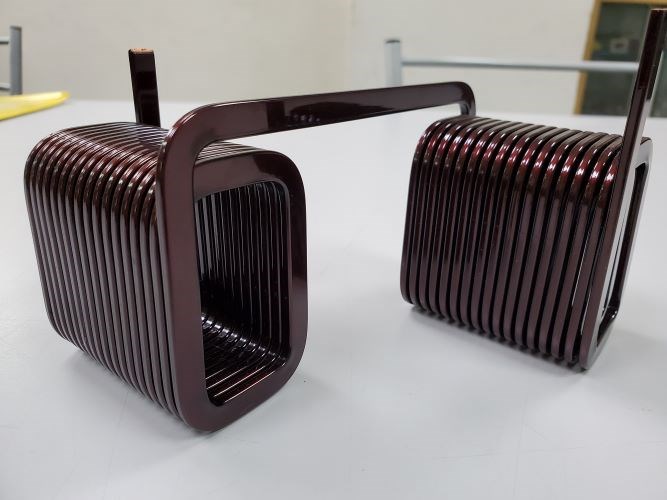

Flat wire bending winding machine made for different size flat wire coil, customized machine is available as requested.

分享到

Specification

Model	WH-420B-220V
Control System	PLC Control / 3 axis servo motor controller
Feeding motor	Servo motor for precise length control
Bending motor	Servo motor for angle control
Traverse motor	Servo motor for pitch control
Memory	USB connector
Bending spindle	1 spindle
Wire size	4x10mm (Max)
Coil Diameter	400mm (Max)
Traverse height	220mm
Power source	220V +/- 10%, 50/60Hz
Air pressure	2LPM (I/min)
