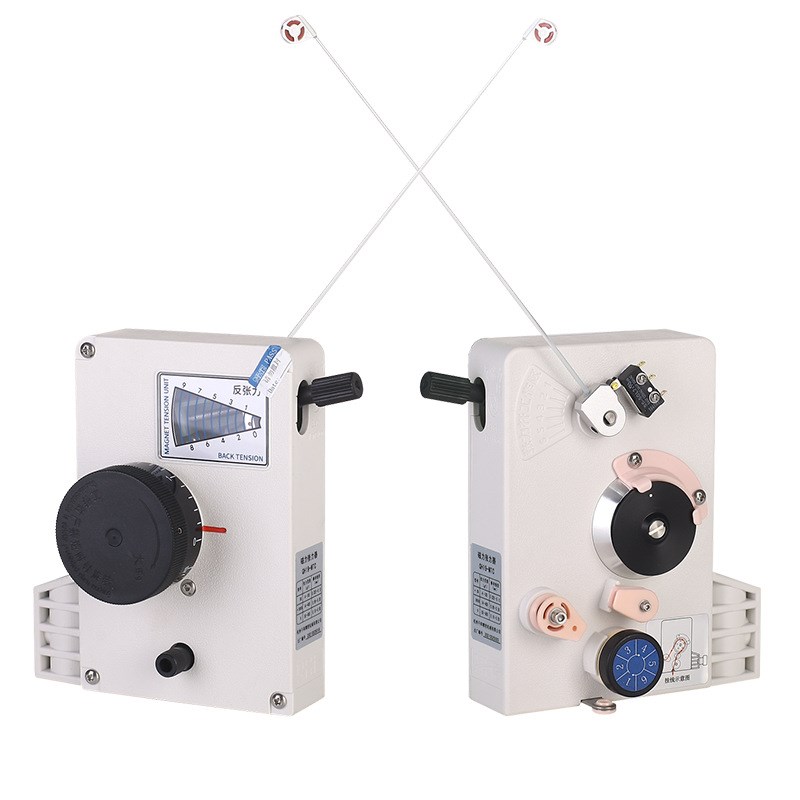

[ Magnetic Tension of Winding Machine ]
Vertical type
Wey Hwang magnetic tension used permanent magnet as a non-contact method of generating a variable friction on the main wheel of tension, maintaining wire tension at the set value for long periods with no requirement for adjustment.
| Tension Model |
Wire Size |
Tension Range |
| MTCSS |
0.025 – 0.12 mm |
5 – 130 g |
| MTC300S |
0.06 – 0.30 mm |
14 – 400 g |
| MTCS |
0.10 – 0.50 mm |
50 – 900 g |
[ Magnetic Tension of Winding Machine ]
Horizontal type
Wey Hwang magnetic tension used permanent magnet as a non-contact method of generating a variable friction on the main wheel of tension, maintaining wire tension at the set value for long periods with no requirement for adjustment.
| Tension Model |
Wire Size |
Tension Range |
| MTASS |
0.025 – 0.12 mm |
4 - 100 g |
| MTA300S |
0.06 – 0.30 mm |
14 - 400 g |
| MTAS |
0.10 – 0.50 mm |
15 - 900 g |
| MTAM |
0.25 – 0.80 mm |
300 - 1500 g |
| MTAL |
0.30 - 1.00 mm |
400 - 2000 g |

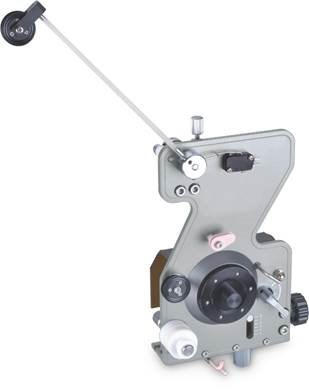

[ Mechanical Tension of Winding Machine ]
Mechanical Tension for medium range wire size: 0.2mm - 2.0mm.
| Tension Moel |
Wire Size |
Tension Range |
| TCL |
0.20 – 0.60 mm |
200 - 2000 g |
| TCLL |
0.50 - 1.20 mm |
1000 - 5000 g |
| TC3L |
0.70 - 2.00 mm |
2000 - 10000 g |
