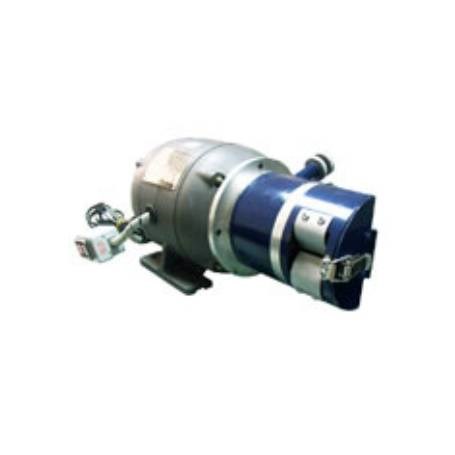

WH- S01 / S02 / S03 Wire Stripping Machine

分享到
TYPE   WH-S01 WH-S02 WH-S03
Brush Type Wheel Type Blade Type
Stripping Method

Steel wire brush

(0.06/0.1/0.2mm)Wobble wheel		 Fiberglass wheel 5 pcs blade
Wire Size 0.1 ~ 0.8 mm 0.3 mm 以下 0.5 ~ 5 mm
Adjust Method Two brushes Two wheels Screws
Mounting Can be fixed on table top Portable Portable
Lead-wire type Single or multiple wires Single or multiple wires Single wires
Motor One motor One motor One motor
Power Supply AC 110V or 220V     AC 110V or 220V AC 110V or 220V
Size (LxHxW) 390 x 180 x 180 mm 230 x 195 x 160 mm 280 x 200 x 160 mm
Weight 16 Kgs 7.5 Kgs 8.2 Kgs
