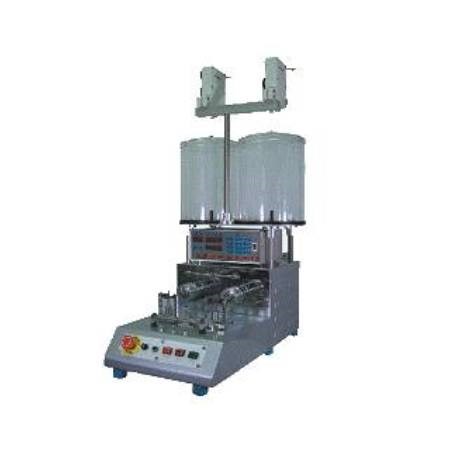

Motor Coil Winding Machine (編號:WH-520 )

Bench top motor coil flyer winding machine with digital winding machine controller and brushless motor for precise coil winding.

分享到

  Specification

Model WH-520-220V
Spindle 2
Wire Size 0.03 - 0.6 mm
Spread Pitch 70 mm
Coil Size 8 - 50 mm ( OD )  20 mm ( Height )
Machine Speed 3000 RPM ( Max )
Spread Motor Stepping Motor
Power Source AC 220V  ;  50 / 60 HZ
Net Weight 80 kgs

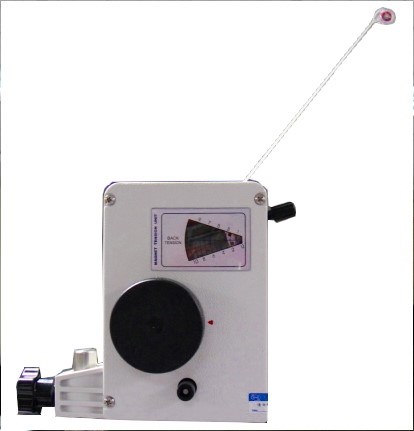

  Tension option

  TENSION     MTCSS MTC300S MTCS
Picture Magnetic tension Magnetic tension Magnetic tension
Wire Size 0.025 ~ 0.12  mm 0.06 ~ 0.25  mm 0.10 ~ 0.50  mm



  Coil Sample
