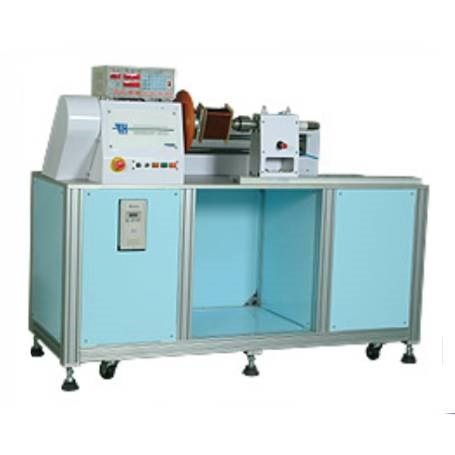

WH-500 High Torsion Coil Winding Machine

Speed control foot pedal as option

分享到

  Specification

Machine Model WH-500 WH-500A H-500B
 Wire Size 0.5 - 8.0mm 0.5 - 8.0mm 0.5 - 8.0mm
Spread Pitch 0.001 - 9.999mm 0.001 - 9.999mm 0.001 - 9.999mm
Winding Width 400mm (Max) 600mm (Max) 800mm (Max)
Coil Diameter 400mm (Max) 400mm (Max) 600mm (Max)
Main Motor 2HP AC motor 2HP AC motor 3HP AC motor
Spread Motor Stepping motor Stepping motor Stepping motor
Winding Turns 9999.9 or 99999 turns 9999.9 or 99999 turns 9999.9 or 99999 turns
Max. Speed 600 rpm (Max) 600 rpm (Max) 600 rpm (Max)
Memory 999 Steps 999 Steps 999 Steps
Power Source AC 220V, 50 / 60 Hz AC 220V, 50 / 60 Hz AC 220V, 50 / 60 Hz
