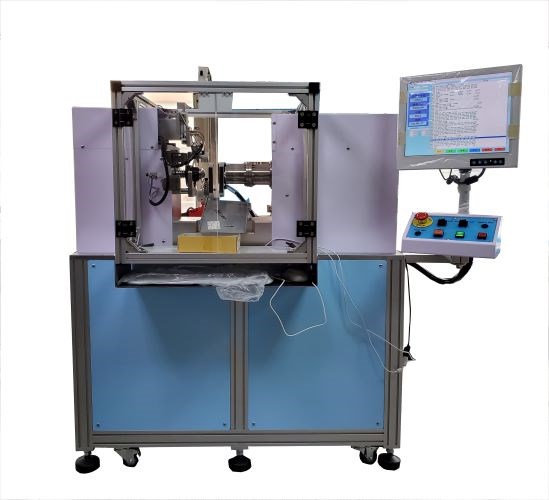

Automatic Air Coil Winding Machine (編號:WH-410)

Automatic Air Winding Machine Features:
* CNC 6 axis servo motor transmission system.
* Password function, prevent program changed by accident.
* Simple structure, easy to maintenance.
* Precise tension control.
* Auto wire assortment, no residual wire leaving.
* High-level language command to edit program.
* Machine can make according to product requirement.


分享到

  Specification

Ｍodel WH-410A WH-410B
Controlled system CNC 6 Axis AC servo motor synchronizing control
Storage Method Windows interface PC with USB connector & DVD ROM
Maximum speed 3000 rpm (Max)
Minimum angel setting 360∘/ turn,Setting unit = 0.1∘
Spindle stop precision ± 0.1∘
Nozzle moving distance 80mm; Movement unit 0.01mm 120mm; Movement unit 0.01mm
Wire size range 0.02mm - 0.5mm 0.5mm - 1.2mm
Maximum winding diameter 60mm (Max) 100mm (Max)
Maximum winding width 60mm (Max) 100mm (Max)
Winding direction CW / CCW
Power Source Single phase 220V, 50/60 Hz
