Wey Hwang professional winding machine manufacturer in Taiwan

點選圖片可放大

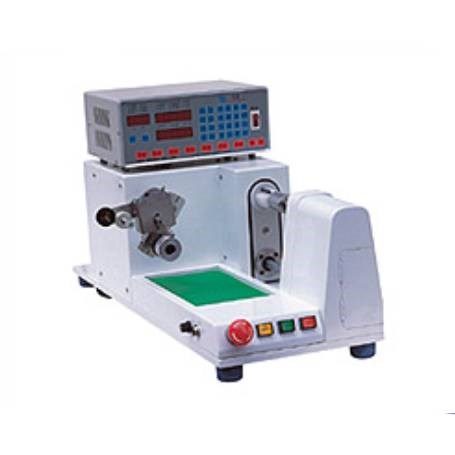

Air Coil Winding Machine (編號:WH-400A/B)

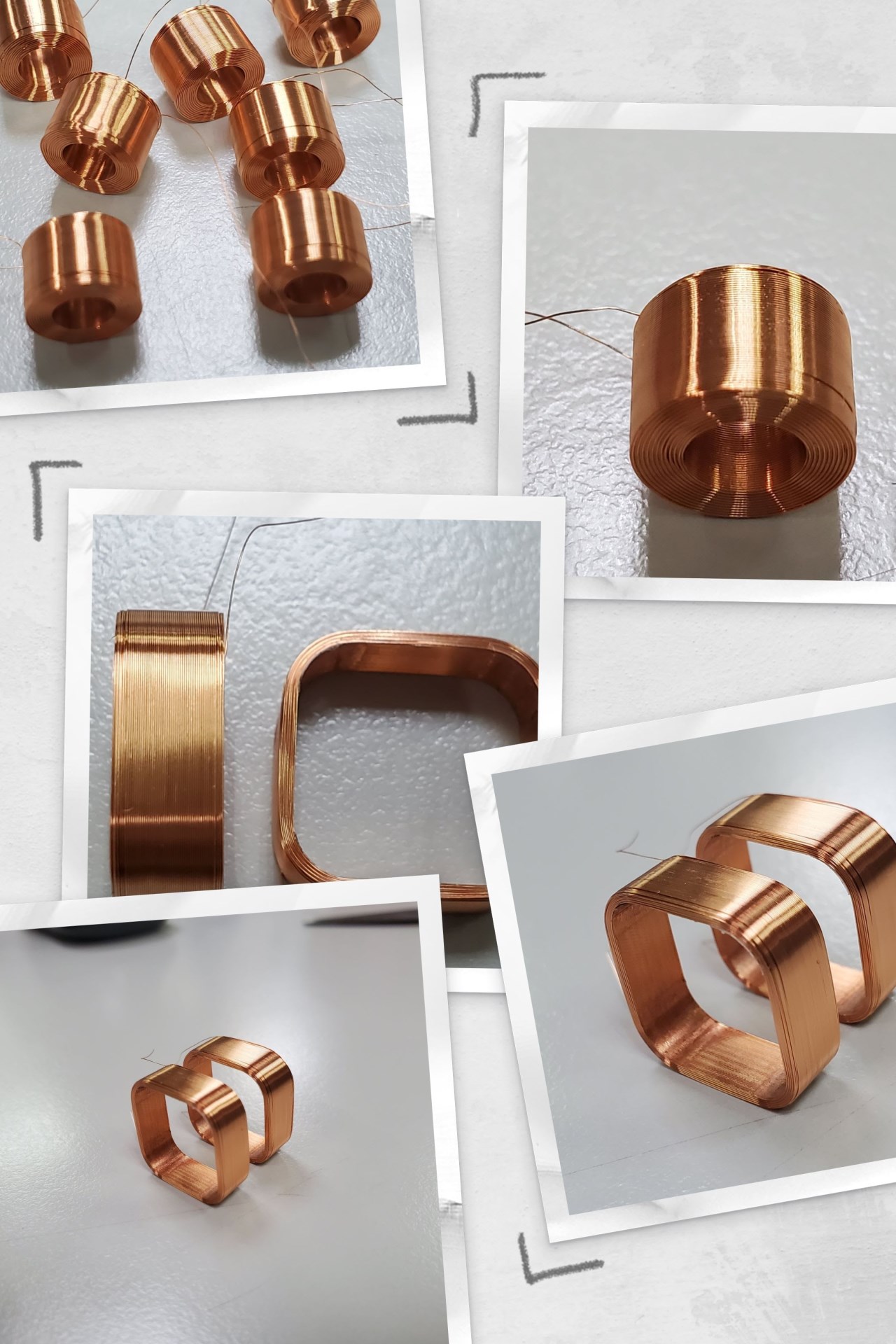

• Specialized for self bonding wire coil.
• Easy for operation.
• Auto unload coil while finish winding.
• Foot switch connection.
• Memory last for over 1 year.

分享到

  Specification

Model WH-400A      WH-400B
Wire Size 0.02-0.5mm 0.02-1.0mm
Spread Pitch 9.999mm (Max) 9.999mm (Max)
Turns 1-9999.9 turns 1-9999.9 turns
Spreading Width 25mm (Max) 25mm (Max)
Winding Diameter 40mm (Max) 100mm (Max)
Main Motor 1/8HP DC motor 1/8HP DC motor
Spreading Motor Stepping motor Stepping motor
Speed 6000rpm (Max) 1500rpm (Max)
Memory 999 Options   999 Options
Power Supply AC 220V , 50/60 Hz AC 220V , 50/60 Hz
