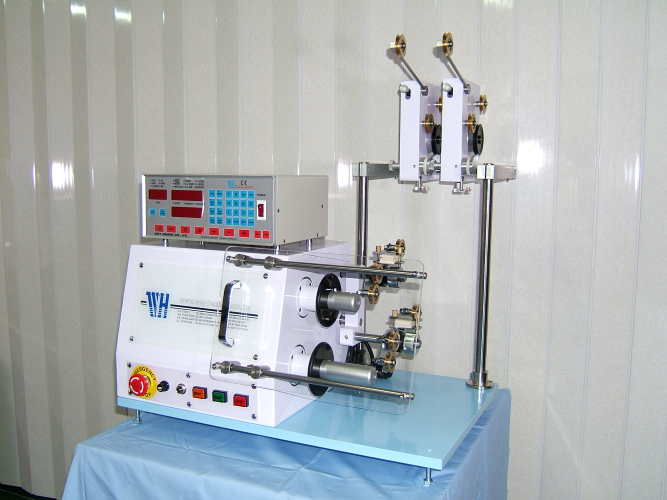

1 spindle digital coil winding machine (編號:WH-751 & WH-752)

High-Torsion Series digital coil winding machine is digital programmable coil winding machine with brushless DC motor. The maximum wire size can reach 3.0mm. It's the best choice for secondary winding.
• Microprocessor design, easy for program-setting.
• Stepper motor driven by constant-current power supply,, high spreading speed precise winding.
• "Start Point" could set by key panel or with teachable function. Display will show the position of spreading head while setting.
• Wire passing through ceramic rollers prevent enamel from high temperature.
• Multiple spindles winding synchronal for highest efficiency.
• Foot-switch connection for better efficiency.
• Speed control foot pedal as option of machine.
• Winding parameters and options can be set
