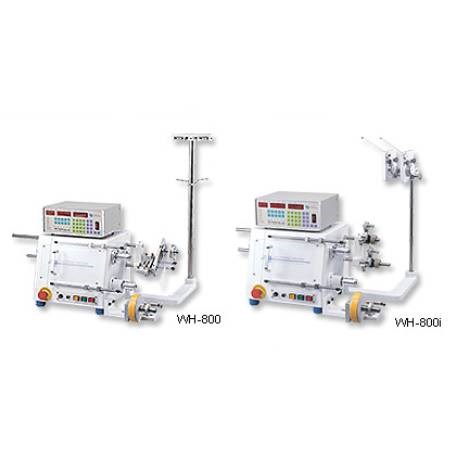

WH-800 & WH-800i

WH-800 digital coil winding machine is digital programmable coil winding machine, there is insulation tape device and margin tape device with the machine. It's the best choice for winding transformer.
• Feeder head of WH-800 can install four different wire size at the same time.
• Winding and taping can be done by one machine.
• Stepper motor driven by constant-current power supply, high spreading speed precise winding.
• "Start Point" could set by key panel or with teachable function. Display will show the position of spreading head while setting.
• Wire spreading by nozzle type spreading head.
• Wire passing through ceramic rollers prevent enamel from high temperature.
• Foot-switch connection for better efficiency.
• Speed control foot pedal as option of machine.
• Winding parameters and options can be set independently for each step.
• Memory capacity accommodates 999 steps of parameters with off-power memory retention.
