Digital coil winding machine (編號:WH-761/WH-762/WH-763/WH-764)

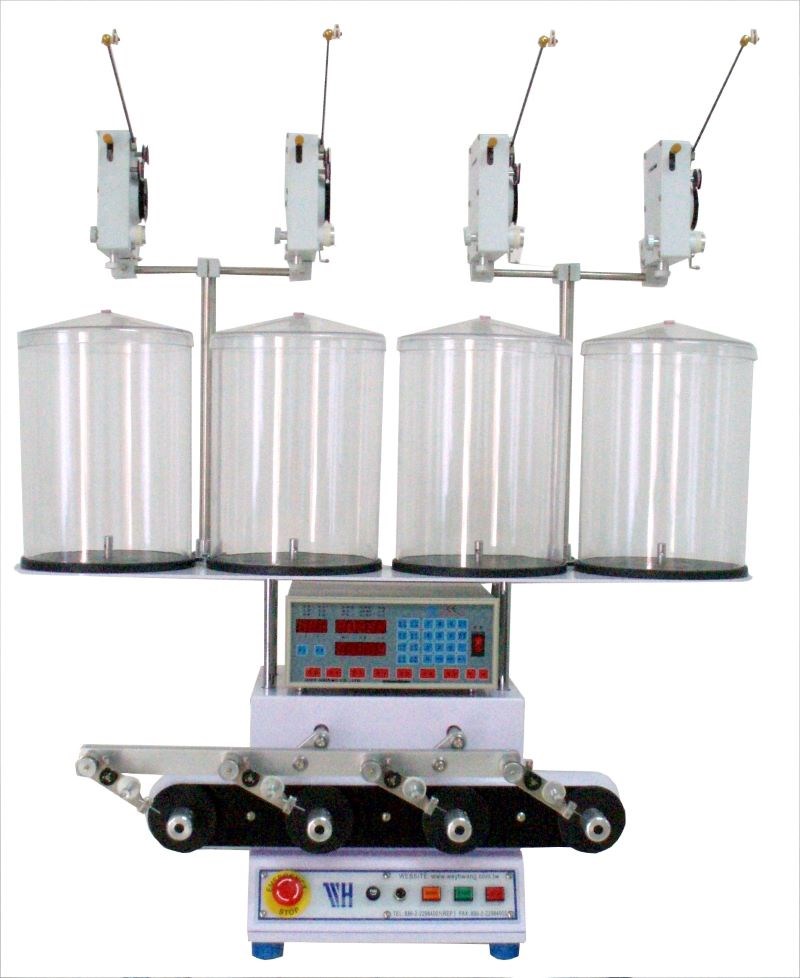

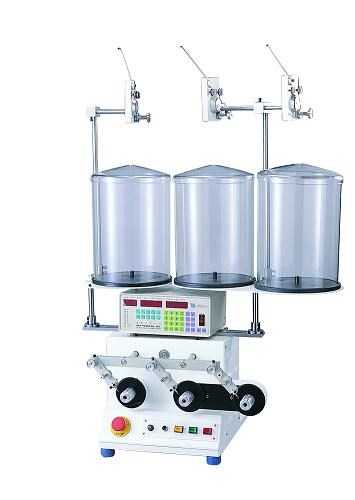

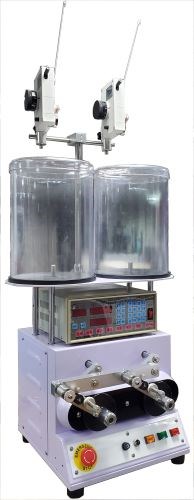

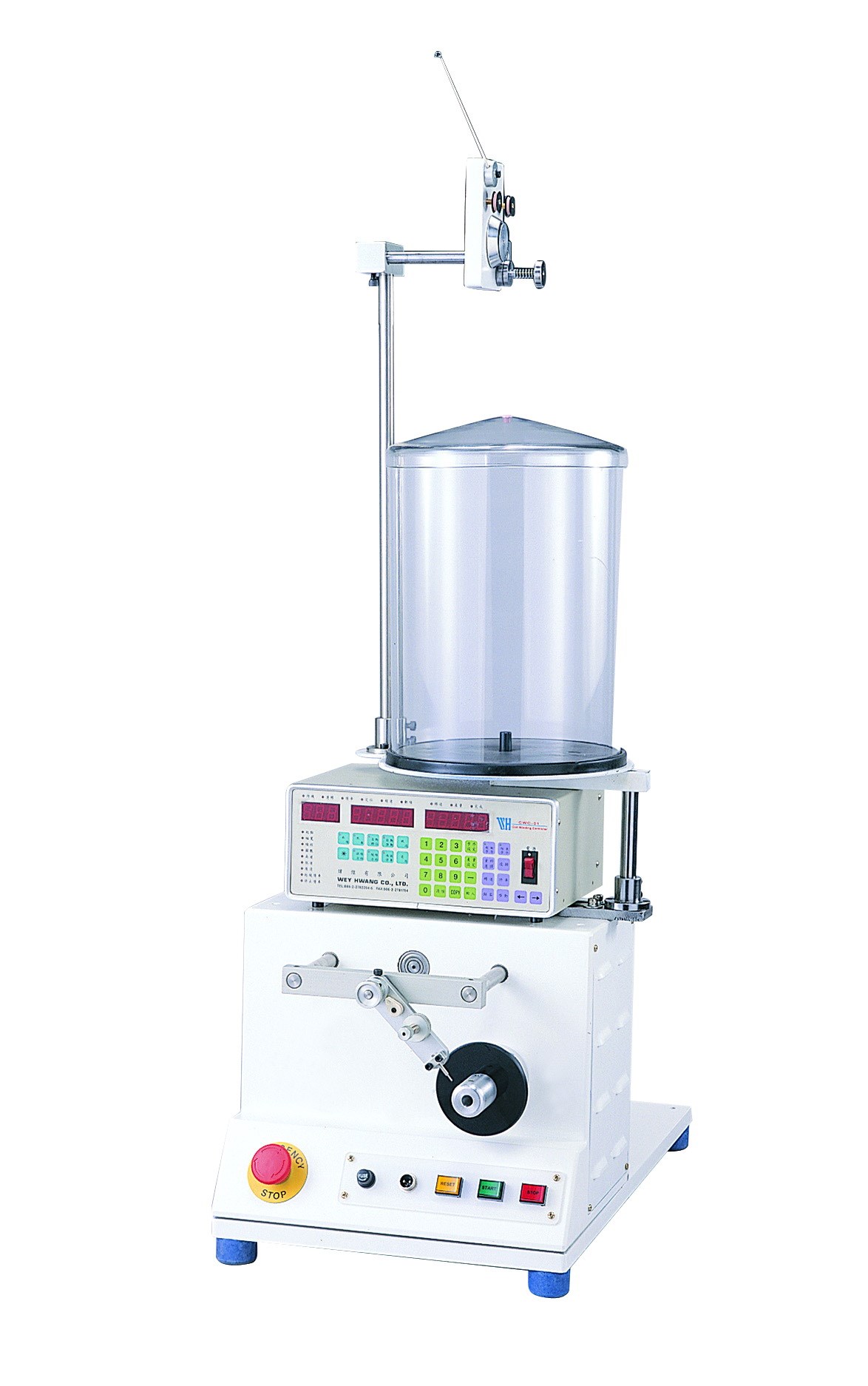

WH-76x Series digital coil winding machine are digital programmable high-speed coil winding machine, there are four models: one spindle, two spindles, three spindles and four spindles. It's the highest efficiency equipment.
• Microprocessor design, easy for program-setting.
• Stepping motor driven by constant-current power supply,, high spreading speed precise winding.
• "Start Point" could set by key panel or with teachable function. Display will show the position of spreading head while setting.
• Wire spreading by nozzle type spreading head.
• Wire passing through ceramic rollers prevent enamel from high temperature.
• Multiple spindles winding synchronal for highest efficiency.
• Foot-switch connection for better efficiency.
• Speed control foot pedal as option of machine.
• Winding parameters and options can be set independently for each step.
• Memory capacity accommodates 999 steps of parameters with off-power memory retention.
