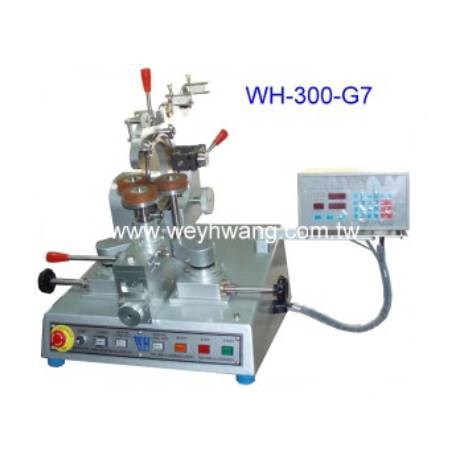

WH-300-G7

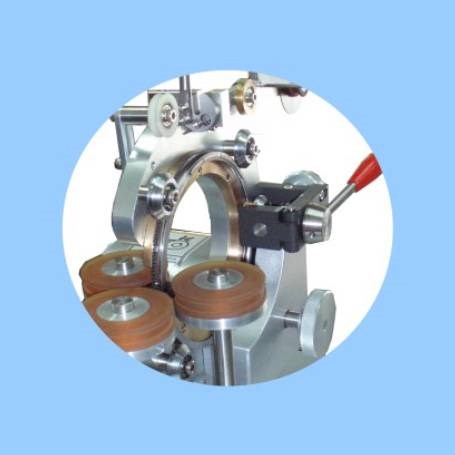

WH-300-G7 gear type toroid winding machine was designed for winding small coil with precise winding requirement.

分享到

  Specification

Model WH-300-G7
Coil OD 28 – 80 mm
Finished ID 15 mm (MIN)
Coil Height 45 mm (MAX)
Shuttle DIA 175 mm
Max Speed 300 rpm
Main Motor 1/2HP DC Motor
Spread Motor Stepping motor
Memory Capacity 999 Steps
Power Source 220V ± 10%; 50 / 60 Hz



  Coil Sample
