WH-300 (G10S/G10B/G13/T10S/T10B/T13)

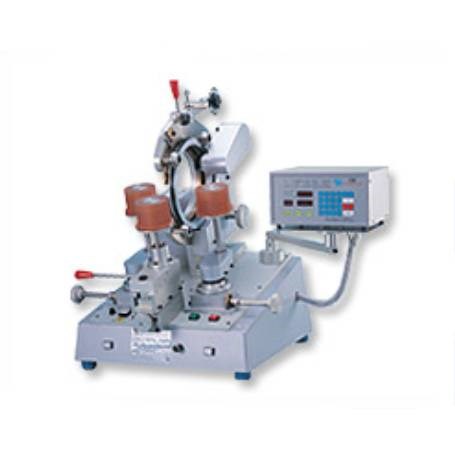

WH-300 Gear type Digital Toroid Winding / Taping Machine adopts TWC-01 digital toroid controller, it's an accurately and reliability digital toroid winding / taping machine.
Specification:
• MAX. SPEED: 250 rpm
• WINDING MOTOR: 1/2HP DC Motor
• SPREAD MOTOR: Stepping Motor
• MEMORY CAPACITY: 999 Sequences
• POWER SOURCE: 220V +10%, 50/60 Hz

分享到

HEAD TYPE G10S WINDING G10B WINDING G13 WINDING T10S TAPING T10B TAPING T13 TAPING
COIL O.D. 40~150mm 60~150mm 80~250mm 40~150mm 60~150mm 80~250mm
MIN.FIN. I.D. 25mm 35mm 45mm 25mm 35mm 45mm
MAX. HEIGHT 80mm 80mm 120mm 80mm 80mm 120mm
WIRE SIZE 0.5~1.5mm 0.5~2.2mm 0.5~2.6mm
SHUTTLE DIAMETER 250mm 250mm 350mm 250mm 250mm 250mm
SHUTTLE WIDTH 8, 12,16, 20, 25 8, 12,16, 20, 25 11, 14, 1720, 23, 26 TAPE WIDTH
4~8mm		 TAPE WIDTH
8~15mm		 TAPE WIDTH
12~25mm
Min. Finished I.D. Will be different by shuttle size and coil height.



  Toroid Sample

ITEM 1 2 3 4 5 6
SUIT MACHINE WH-900-B6 WH-300-G10S
WH-300-T10S		 WH-900A-S8 WH-300-G10S WH-300-G10B WH-900-B6
ITEM 7 8 9 10 11 12
SUIT MACHINE WH-900-B8 WH-900-B6 WH-900-S6 WH-900-B4 WH-900-S4 WH-900-B4
