WH-900(B8/S8)

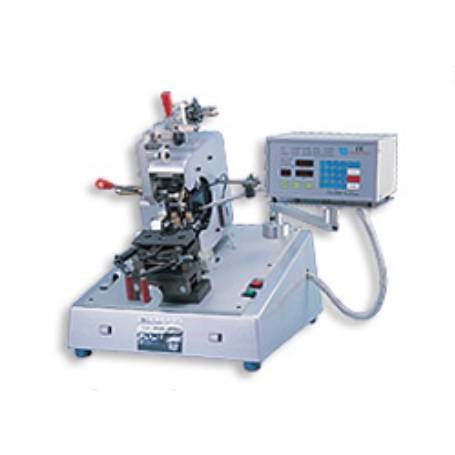

WH-900A Digital Toroid Winding Machine adopts TWC-01 digital toroid controller, it's an accurately and reliability digital toroid-winding machine.
Specification:
• MAX. SPEED: 1200rpm
• WINDING MOTOR: 300W Brushless Motor
• SPREAD MOTOR: Stepping Motor
• MEMORY CAPACITY: 999 Steps
• POWER SOURCE: AC220V +10%, 50/60 Hz
• DIMENSION: 77x69x55(cm)
• NET WEIGHT: 80KGS

分享到
HEAD TYPE B8 BELT TYPE S8 SLIDER TYPE
COIL O.D 40~120mm 40~120mm
MIN.FIN. I.D 12mm 15mm
MAX. HEIGHT 80mm 80mm
WIRE SIZE 0.3~1.1mm 0.3~0.8mm
SHUTTLE DIAMETER 220mm 220mm
SHUTTLE WIDTH 8, 10, 12, 15, 17, 20 8, 10, 12, 15, 17, 20
Min. Finished I.D. Will be different by shuttle size and coil height.
