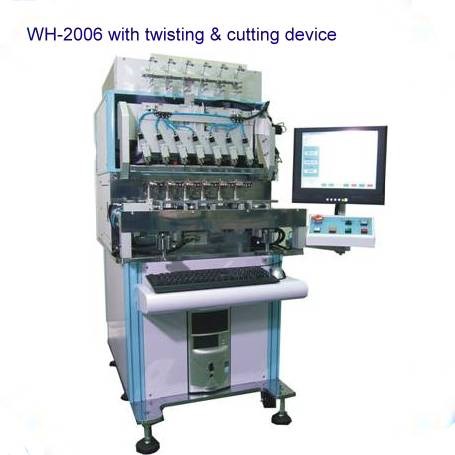

6 spindle automatic winding machine (編號:WH-2006)

Automatic Winding Machine Features:
* CNC 6 Axis servo motor transmission system.
* Password function, prevent program changed by accident.
* Unique winding jig design, easy to change the jig.
* Simple structure, easy to maintenance.
* Precise tension control.
* Auto wire assortment, no residual wire leaving.
* High-level language command to edit program.
* Auto loading & unloading function (Optional)
* Fine wire twisting function (Optional)
* Pneumatic cutter device (Optional)

分享到

商品特色

Specification

Model	WH-2006
Control System	CNC 6 Axis AC servo motor synchronizing control
Storage Method	Windows interface PC with USB connector & DVD ROM
Winding Spindle	6 spindle, spindle distance: 72mm
Winding Speed	18,000 rpm (Max)
Spindle Angle	360∘/ turn,Setting unit = 0.1∘
Stop Accuracy	± 0.1∘
Nozzle Move Distance	X Axis 100mm, Moving unit = 0.001mm Y Axis 75mm, Moving unit = 0.001mm Z Axis 65mm, Moving unit = 0.001mm
Wire Size	0.02mm - 0.5mm
Max. Winding Diameter	60mm (Max)
Max. Spread Width	85mm (Max)
Wrapping speed	150 rpm (Max)
Wrapping Angle	0^o , 90^o , and 120^o
Twisting Length	250 mm (Max) / Twisting machine is optional device
Twisting Number	1.3.5.7...in odd number / Twisting machine is optional device
Power supply	Single-Phase 220V +/- 10%, 50/60 HZ
Power consumption	3KVA
Air Supply	4~6 kcf/cm²

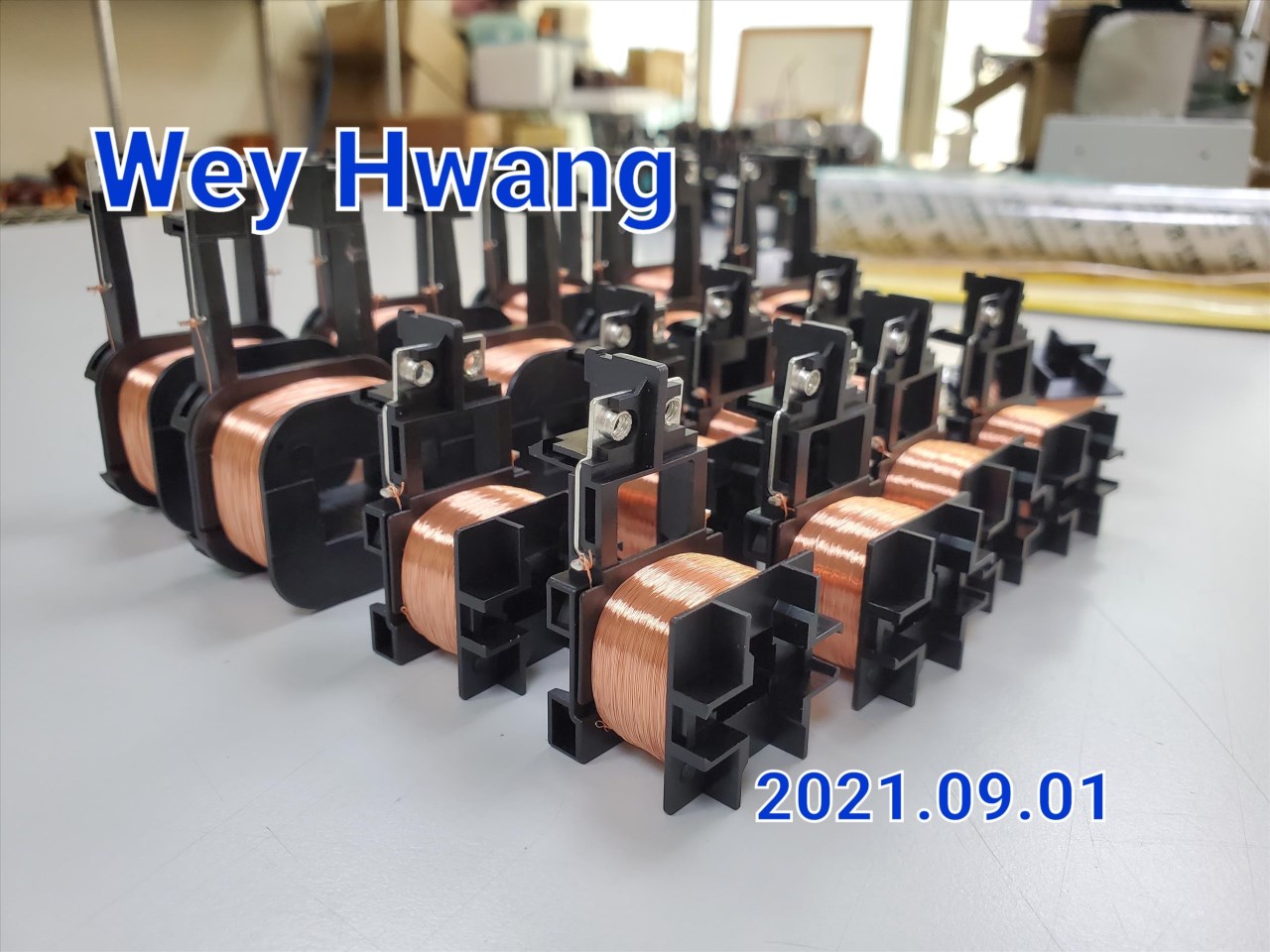

◆ ApplicationDVD reader, Inverter, Switching Power Supplies, Ballast Transformer, Switching Transformer, Electronic Ballast…etc.
